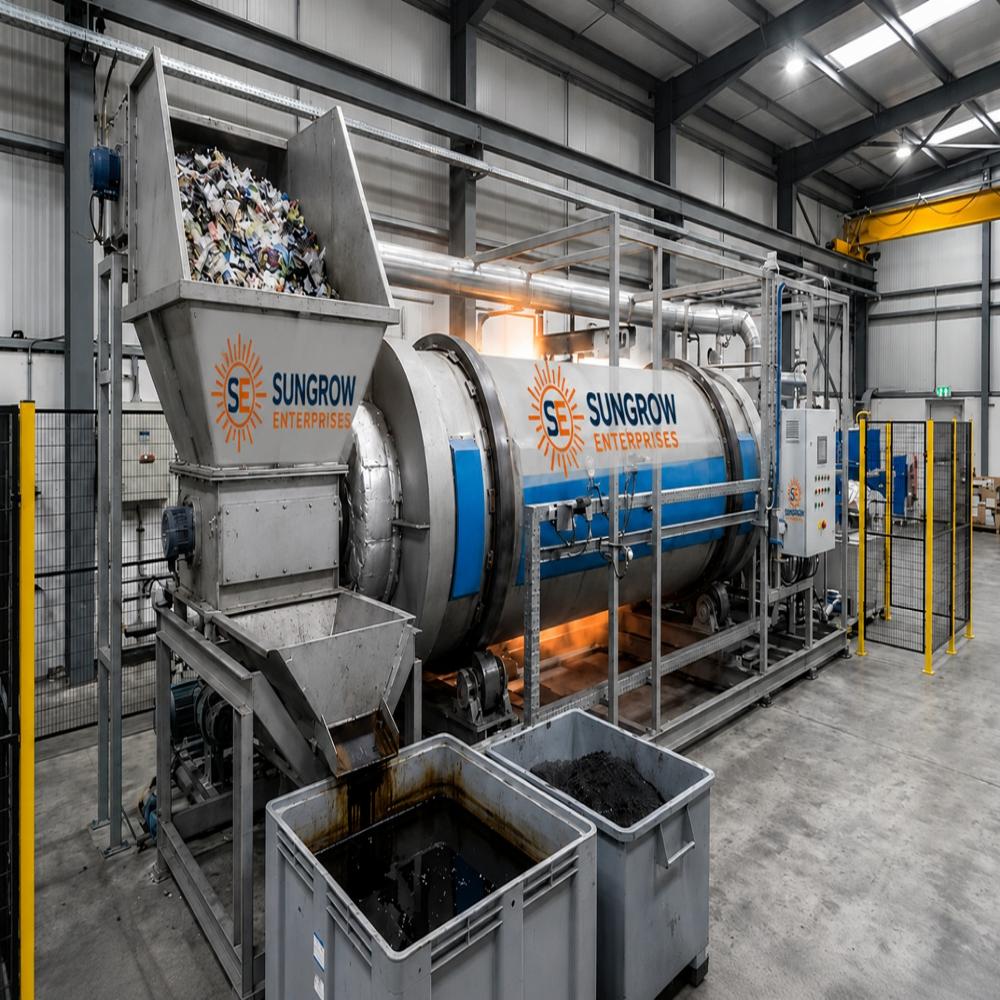

pyrolysis machine

Price 16000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

pyrolysis machine Specification

Type
pyrolysis machine

Material
plastic west

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Hydraulic

Voltage
440 Volt (v)

Power
30 to 35 Watt (w)

Weight (kg)
10 Metric Ton

Dimension (L*W*H)
1500mm Millimeter (mm)

pyrolysis machine Trade Information

Minimum Order Quantity
1 Unit

Main Domestic Market
All India

About pyrolysis machine

Pyrolysis Machine (Reactor) Description

A Pyrolysis Machine (Reactor) is an industrial system designed to thermally decompose plastic waste, biomass, tyres, or other organic materials in an oxygen-free (or oxygen-limited) environment. This process, known as pyrolysis, converts the feedstock into valuable products such as biochar/carbon black, pyrolysis oil, and combustible gas.

Main Components

Feed Hopper Feeds raw material into the reactor.

Pyrolysis Reactor Main vessel where thermal decomposition takes place.

Heating Furnace/Burner Provides indirect heat to the reactor.

Insulation Reduces heat loss and improves efficiency.

Gas Outlet Pipeline Transfers pyrolysis gas to the condenser or burner.

Condenser System Cools the gas to recover pyrolysis oil (for plastic and tyre applications).

Char Discharge System Removes biochar or carbon black safely.

Control Panel Monitors and controls temperature, pressure, and reactor operation.

Working Principle

Raw material is fed into the reactor.

The reactor is sealed to maintain an oxygen-free environment.

Indirect heat raises the reactor temperature to the required operating range.

The material undergoes thermal decomposition (pyrolysis).

Pyrolysis gas is generated and can be reused as fuel for the burner.

Condensable vapours are cooled to produce pyrolysis oil (where applicable).

Solid residue (biochar or carbon black) is discharged after cooling.

Typical Technical Specifications

Reactor Type: Rotary Batch / Continuous Rotary

Construction Material: Mild Steel (MS) or Stainless Steel (SS)

Operating Temperature: 350600C

Heating Method: Indirect Heating

Reactor Drive: Geared Motor with Variable Speed

Insulation: 100150 mm Ceramic Wool / Rock Wool

Operating Environment: Oxygen-Free (Sealed Reactor)

This design ensures efficient thermal conversion while preventing direct combustion of the feed material, resulting in high-quality biochar or other pyrolysis products.
